Billet 3AN Bulkhead Weld Tab

$10.00 USD

Sale Sold out

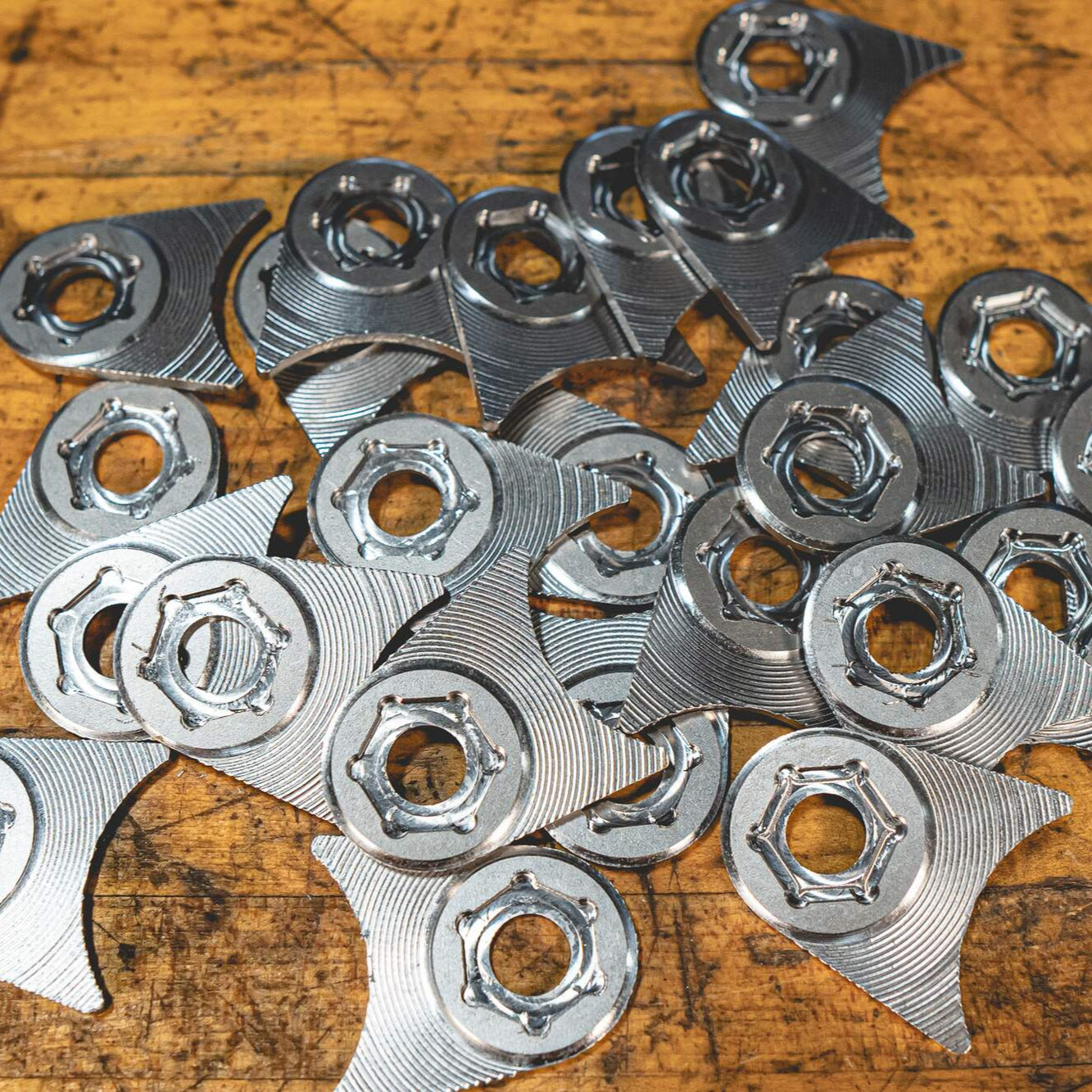

Specifically designed to mount AN bulk heads. These billet weld tabs captivate the fitting, keeping it secure while installing the fitting and lines.

Style Flat mount Roll cage mount Axle mount

Package Quantity 1 5 20 50

Quantity

Details

When building or modifying a chassis, the details are what sets your work apart from the rest. These billet weld tabs are specifically designed to mount AN bulk head fittings. These tabs captivate the bulkhead, holding it in place when tightening the fitting and lines. This captivating feature solves all the headaches associated with the fitting spinning when tightening, insuring proper rotation of the fitting and lines. They make installing the fitting and lines a one wrench job! Between the machined pocket, and stylish tool marks these fittings will level up your fabrication and plumbing game. As many builders know, using traditional off the shelf weld tabs gives your build a "low effort/universal" appearance. Along leveling up the reliability and workability of your plumbing, These billet weld tabs will give your project the custom and bespoke look it deserves.

Specifications

Center of mounting hole to the weld surface is .75"
For use with 5/8" AN3 bulkhead fittings only (stainless steel Earls fittings are my preference for high pressure applications)

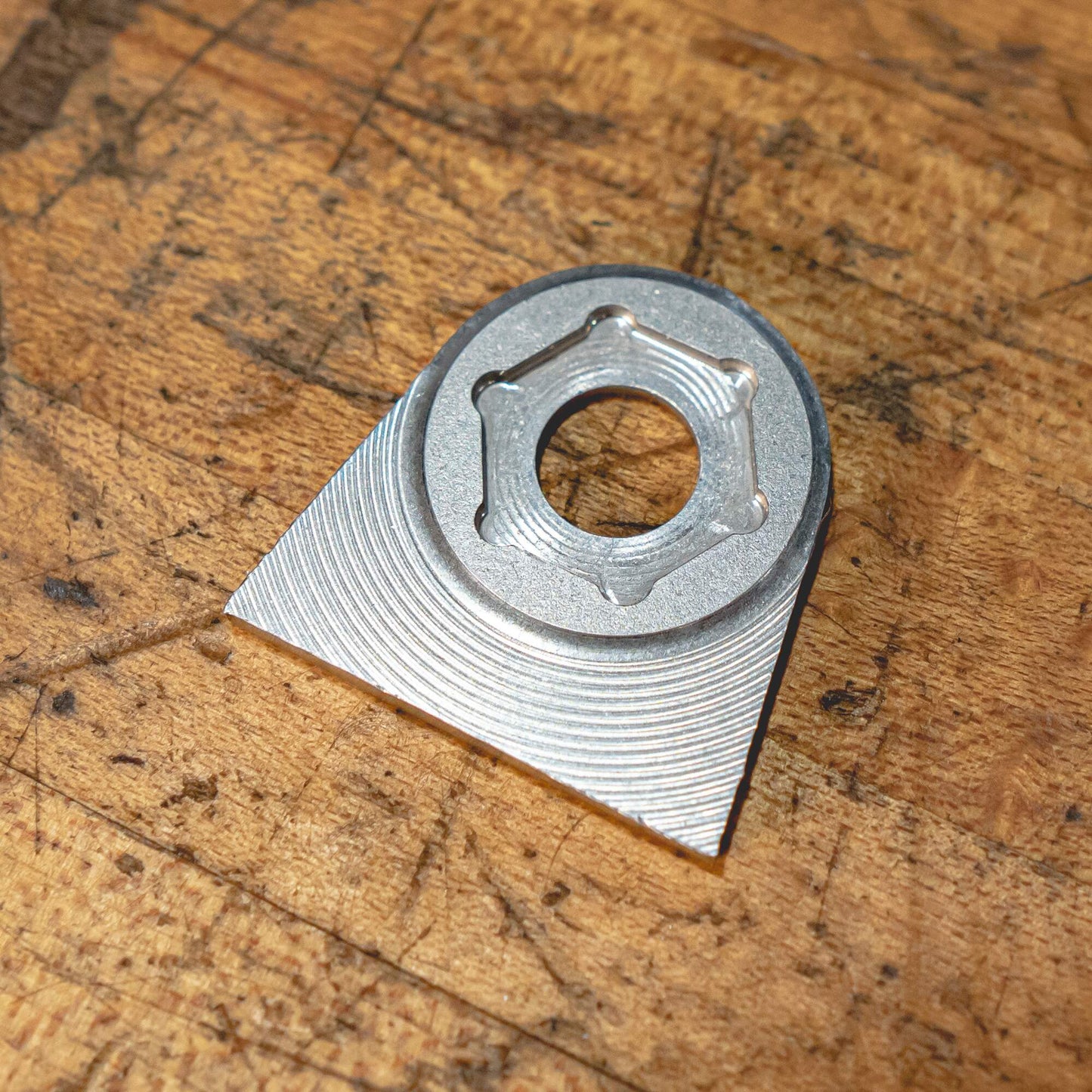

Flat tabs are 1.25" wide

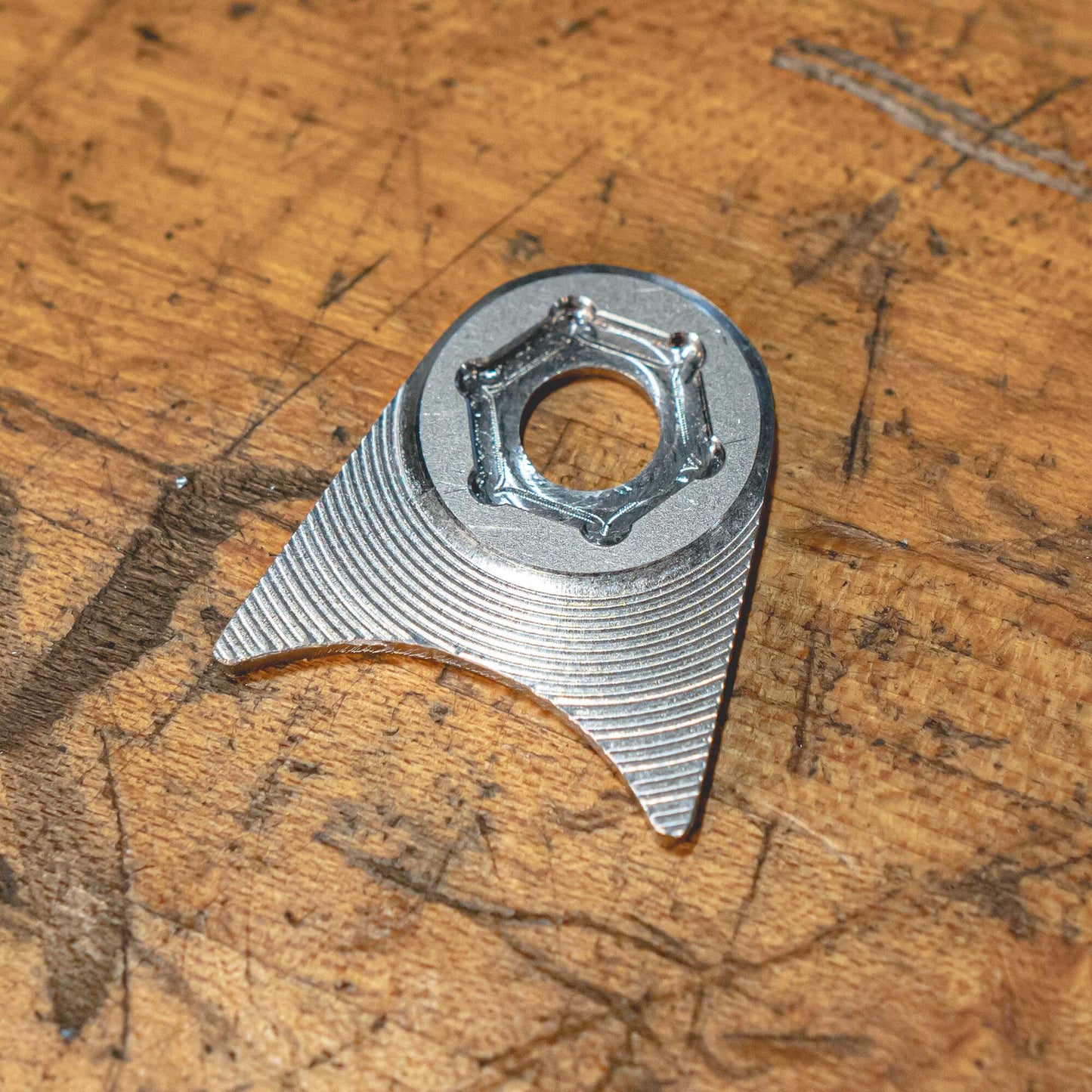

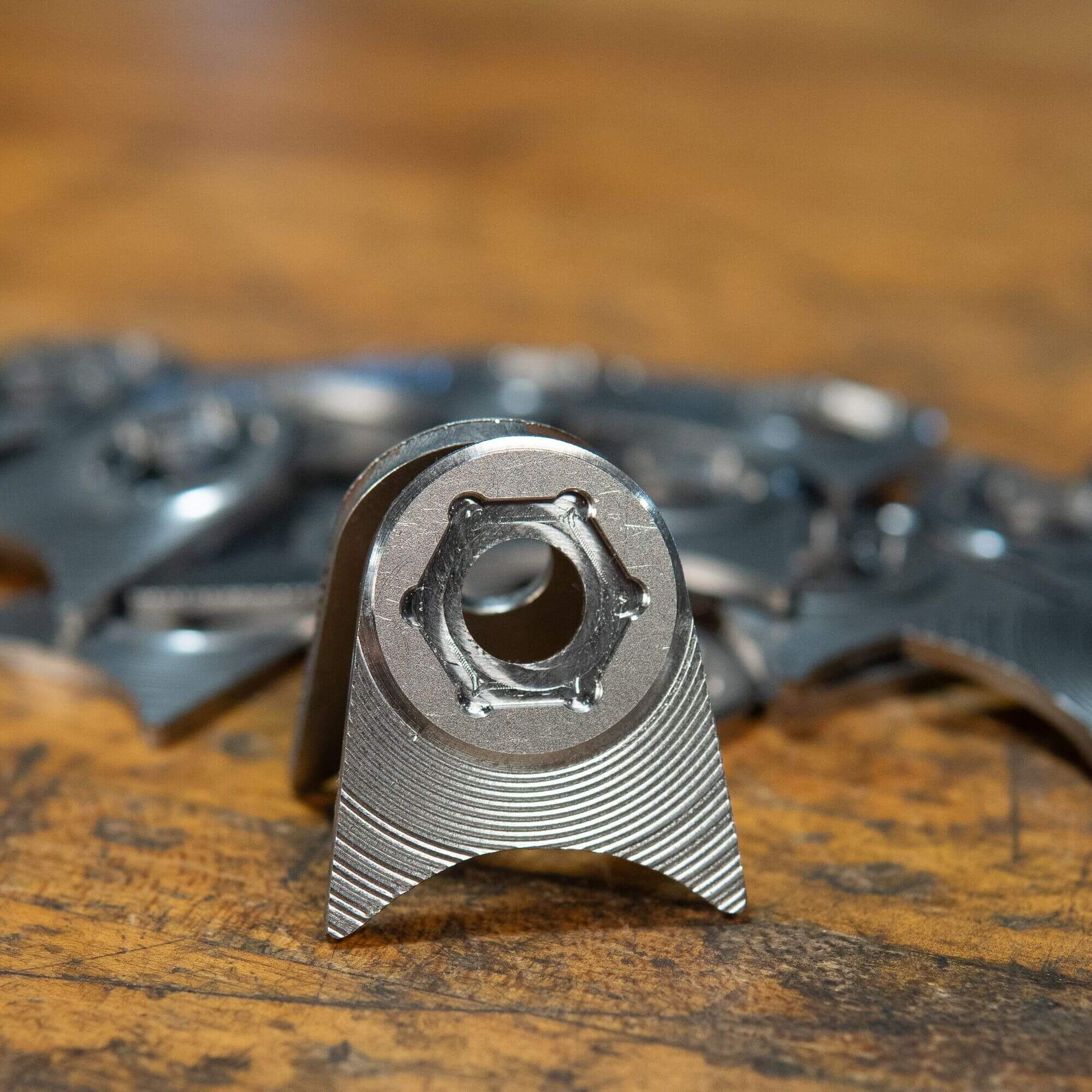

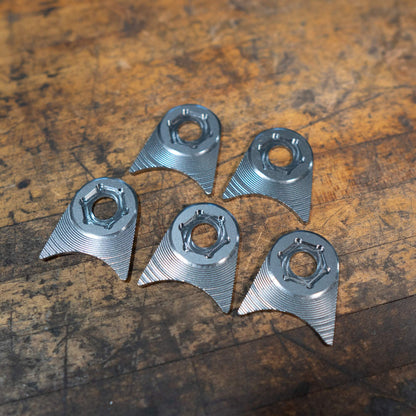

Tube mounted tabs feature a 1.625" dia. arc, making them a great fit for 1.5"-1.75" tube with no modifications, and a weldable fit for 1.375"-2" tube.
Axle mounted tabs Feature a 3" dia. arc Making them a great fit for most axles 2.5"-3.5"
